RunFlow()

una.RunFlow() computes per-edge pedestrian or bicycle flows across the network, given origin and destination point layers. It is UNA’s customized betweenness-centrality analysis, tuned specifically for active mobility modeling.

What it does

Conceptually, RunFlow():

  1. Loads network, origins, destinations, and (optionally) observer and obstacle layers.

  2. For each origin, identifies the set of destinations within settings_reference:search_radius.

  3. Distributes each origin’s trip generation across those destinations using a Huff-style gravity model (when settings_reference:flow_destination_weights = True).

  4. For each origin-destination pair, enumerates K alternative paths using Plateau’s penalty method (up to settings_reference:flow_n_alternatives).

  5. Splits the trip between those alternatives (weighted by settings_reference:flow_path_detour_penalty and the detour envelope).

  6. Accumulates every trip’s contribution onto each edge it traverses, producing a per-edge flow value.

  7. Exports the per-edge flow (and optionally per-node flow, observer counters, and obstacle usage) as a GeoDataFrame.

The engine handles turn-aware routing, elevation penalties, obstacle costs, per-origin destination assignment, and directional (AB/BA) flow tracking — all controllable through settings.

Choosing an engine

RunFlow() dispatches to one of two flow engines based on settings_reference:flow_engine:

Engine

How it routes

When to use

"aggregate_flow" (default since 2.5.5)

Distributes each trip across the OD pair’s full gradient-overlap envelope in one pass — no path enumeration.

Large and state-wide runs; whenever flow should spread over the complete envelope of viable streets. Turns and assigned routing not yet supported.

"k_alternatives"

Enumerates up to K discrete alternative paths per OD pair (Plateau’s penalty method) and splits the trip among them.

Path-level fidelity; turn-aware routing; assigned routing; route-alternatives export.

Both engines populate the same result arrays and produce the same output files, so switching engines is a one-line change. Within the k_alternatives engine, turn-aware routing switches on internally when settings_reference:turns = True; there is no separate class name to worry about. See K-alternative paths (Plateau’s method) and Aggregate flow (gradient-overlap method) for the math behind each.

The same origin–destination pair (MIT SAP → Harvard Housing Center, origin weight 100) through both engines, with identical settings:

K-alternative flow Aggregate flow

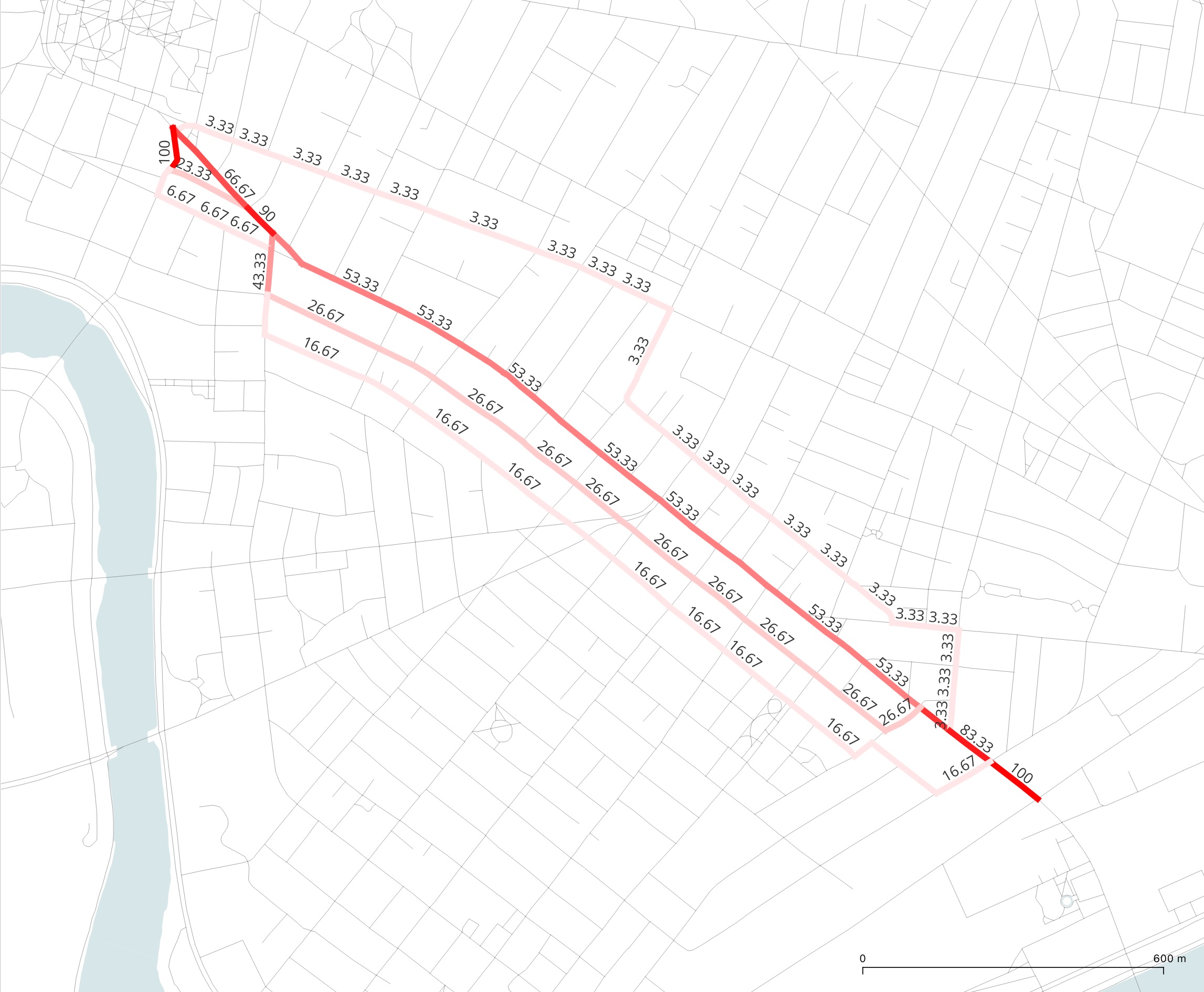

K-alternative flow, detour ratio 1.2 — trips split across discrete alternative paths.

Aggregate flow, detour ratio 1.2 — trips spread across the full detour envelope.

Minimum required settings

The three data layers plus a search radius:

una.settings.data_folder       = r"Boston"
una.settings.network_file      = "20260703_PercLenNetwork_InnerCore.geojson"
una.settings.origins_file      = "Cambridge_building_centroids_pop2020.geojson"
una.settings.destinations_file = "MA_bus_stops.geojson"
una.settings.search_radius     = 500

una.RunFlow()

Every other flow parameter has a sensible default: exponential decay turned on, detour ratio 1.05, ten alternatives per OD pair, origin and destination weights read from the "Count" sentinel column.

Key parameters to think about

For a realistic pedestrian-flow model, the parameters that most affect the shape of the output:

Setting

Effect

settings_reference:flow_detour_ratio

How much longer than shortest an “acceptable” alternative can be. 1.15 allows 15 % detours — a reasonable pedestrian default.

settings_reference:flow_detour_mode

"ratio", "buffer", or "min". "min" is recommended — combines proportional ratio with an absolute buffer so short trips aren’t unfairly clipped.

settings_reference:flow_n_alternatives

Cap on paths per OD pair. 10 is lean, 30–50 gives richer flow patterns.

settings_reference:flow_decay_method

"closest" (default) makes trip generation depend on distance to the nearest destination. "gravity_cap" makes it depend on total gravity — requires calibration.

settings_reference:turns

Turn-aware routing. 2–4× slower but usually essential for a defensible model.

settings_reference:elevation

Uphill penalty. Requires 3D LineStrings in the network file.

See K-alternative paths (Plateau’s method) for the math behind path enumeration, and Gravity and decay models for the trip generation math.

Optional inputs

Observer points. Passive counters that report the flow passing through them, without influencing routing. Load via settings_reference:observer_points_file. See Observers and obstacles.

Obstacle points. Cost-adding penalties on specific edges or nodes. Load via settings_reference:obstacle_points_file. Affects routing decisions. See Observers and obstacles.

Per-origin destination assignment. When both settings_reference:origin_destination_id_column and settings_reference:destination_id_column are set, each origin routes only to destinations whose ID matches — useful for scenarios like “route each school only to bus stops in the same district.”

What gets exported

Output lands in <data_folder>/Results/flow_<timestamp>/ (unless overridden). The primary files:

File

Contents

<file_name>.feather / .geojson

Per-edge flow — one row per network edge, columns for total flow and (when settings_reference:flow_return_directional = True) AB/BA components.

<file_name>_network_nodes.*

Per-node flow, written when settings_reference:flow_compute_node_flow = True (default).

<file_name>_observer_points.*

Observer point flow counters — one row per observer with flow_AB, flow_BA, flow_total. Written when observer points are configured.

<file_name>_obstacle_points_usage.*

Obstacle hit counters — one row per obstacle with hits_AB, hits_BA, hits_total. Written when settings_reference:flow_track_obstacle_points_usage = True.

<file_name>_destinations_used_origins.*

Per-destination list of contributing origins. Written when settings_reference:flow_track_origins_per_destination = True.

<file_name>_routes.*

Complete generated route geometries — one row per alternative path. Written when settings_reference:flow_output_routes = True (k_alternatives engine only). See below.

Exporting route alternatives

For route-choice studies you often need the routes themselves — not betweenness estimates — so modeled alternatives can be compared against externally observed routes from GPS traces or surveys. Two settings turn this on:

una.settings.flow_route_id_column = "route_id"   # column in BOTH origin and destination files
una.settings.flow_output_routes   = True

una.settings.flow_path_detour_penalty = "exponential"
una.settings.flow_route_enumeration_beta = 0.05

una.RunFlow()

Prepare each observed route’s origin and destination point externally, give both the same route_id value (text or numeric), and UNA generates the K alternatives per pair — exported as <file_name>_routes.geojson / .feather / .csv with one row per alternative:

Column

Contents

route_id

The value shared by the origin and destination — joins the generated alternatives back to the observed route.

origin_uid / dest_uid

Endpoints of the OD pair.

alt_rank

1 = shortest path, 2..K = successive alternatives.

route_cost

Actual (un-penalized) path cost, connector partials included.

n_edges / edge_ids

The network edge ids composing the route — space-separated, handy for map-matching against GPS traces.

geometry

Merged LineString of the route’s edges.

Notes: the number of alternatives per pair is controlled by settings_reference:flow_n_alternatives and the detour envelope; route geometries include the full first/last snap edges (they are not trimmed at the exact origin/destination snap points); and the normal flow/betweenness outputs are still written alongside. Requires flow_engine = "k_alternatives".

Where results also live

Numeric outputs are also accessible on the una.flow instance:

una.RunFlow()
edge_flow_total = una.flow.edge_flow
observer_totals = una.flow.observer_flow_total

Handy for plotting or further pandas manipulation without re-reading the file.

Runtime and calibration tips

Prototype cheap, then commit. For iteration, keep turns = False, elevation = False, flow_detour_ratio = 1.05, and flow_n_alternatives = 10. A 10,000-origin run finishes in seconds. Turn on the expensive knobs for the final production run.

Scale expectations. For pedestrian analyses on a city-sized network:

  • 100 origins × 500 destinations × K=10 → seconds.

  • 10,000 origins × 500 destinations × K=10 → 1–3 minutes.

  • 20,000 origins × 500 destinations × K=50 + turns + elevation → 10–30 minutes.

Calibrate against counts if you can. UNA’s flow output is descriptive on its own but becomes predictive when you fit its edge-by-edge output to real pedestrian counts (from cameras, intercept surveys, automated counters). Once fitted, the model answers “what if” scenarios — the point of doing the analysis at all.

Example — homes to bus stops in Cambridge

from urban_network_analysis import UNA
una = UNA()

una.settings.data_folder       = r"Boston"
una.settings.network_file      = "20260703_PercLenNetwork_InnerCore.geojson"
una.settings.origins_file      = "Cambridge_building_centroids_pop2020.geojson"
una.settings.destinations_file = "MA_bus_stops.geojson"

una.settings.search_radius             = 500
una.settings.origin_weight_column      = "pop2020"
una.settings.destination_weight_column = "weekly_departures"

una.settings.flow_decay                = True
una.settings.flow_decay_curve          = "exponential"
una.settings.gravity_beta              = 0.001

una.settings.flow_detour_ratio         = 1.15
una.settings.flow_detour_mode          = "min"
una.settings.flow_n_alternatives       = 30

una.RunFlow()

Produces per-edge foot-traffic estimates for every residential-to-transit trip in Cambridge, with the Huff destination-choice model splitting each building’s trips across nearby stops in proportion to daily departures.
